Data Centers

A common practice is to spread the nodes across multiple racks. Nodes of a rack share a switch, and rack switches are connected by one or more core switches. Communication between two nodes in different racks has to go through multiple switches. In most cases, network bandwidth between nodes in the same rack is greater than network bandwidth between nodes in different racks.

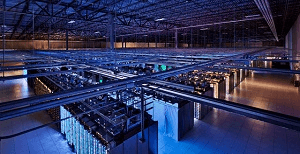

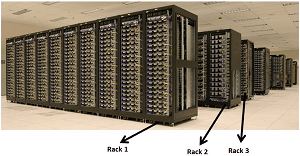

HDFS-DataCenter HDFS-DataCenter

Block Placement

HDFS estimates the network bandwidth between two nodes by their distance. The distance from a node to its parent node is assumed to be one. A distance between two nodes can be calculated by summing the distances to their closest common ancestor. A shorter distance between two nodes means greater bandwidth they can use to transfer data.

HDFS allows an administrator to configure a script that returns a node's rack identification given a node's address. The NameNode is the central place that resolves the rack location of each DataNode. When a DataNode registers with the NameNode, the NameNode runs the configured script to decide which rack the node belongs to. If no such a script is configured, the NameNode assumes that all the nodes belong to a default single rack. To learn more about rack awareness click here.

The placement of replicas is critical to HDFS data reliability and read/write performance. A good replica placement policy should improve data reliability, availability, and network bandwidth utilization. Currently HDFS provides a configurable block placement policy interface so that the users and researchers can experiment and test alternate policies that are optimal for their applications.

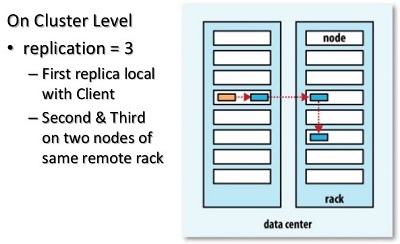

The default HDFS block placement policy provides a tradeoff between minimizing the write cost, and maximizing data reliability, availability and aggregate read bandwidth. When a new block is created, HDFS places the first replica on the node where the writer is located. The second and the third replicas are placed on two different nodes in a different rack. The rest are placed on random nodes with restrictions that no more than one replica is placed at any one node and no more than two replicas are placed in the same rack, if possible. The choice to place the second and third replicas on a different rack better distributes the block replicas for a single file across the cluster. If the first two replicas were placed on the same rack, for any file, two-thirds of its block replicas would be on the same rack.

HDFS Block Placement

After all target nodes are selected, nodes are organized as a pipeline in the order of their proximity to the first replica. Data are pushed to nodes in this order. For reading, the NameNode first checks if the client's host is located in the cluster. If yes, block locations are returned to the client in the order of its closeness to the reader. The block is read from DataNodes in this preference order.

This policy reduces the inter-rack and inter-node write traffic and generally improves write performance. Because the chance of a rack failure is far less than that of a node failure, this policy does not impact data reliability and availability guarantees. In the usual case of three replicas, it can reduce the aggregate network bandwidth used when reading data since a block is placed in only two unique racks rather than three.

Replication Management

The NameNode endeavors to ensure that each block always has the intended number of replicas. The NameNode detects that a block has become under- or over-replicated when a block report from a DataNode arrives. When a block becomes over replicated, the NameNode chooses a replica to remove. The NameNode will prefer not to reduce the number of racks that host replicas, and secondly prefer to remove a replica from the DataNode with the least amount of available disk space. The goal is to balance storage utilization across DataNodes without reducing the block's availability.

When a block becomes under-replicated, it is put in the replication priority queue. A block with only one replica has the highest priority, while a block with a number of replicas that is greater than two thirds of its replication factor has the lowest priority. A background thread periodically scans the head of the replication queue to decide where to place new replicas. Block replication follows a similar policy as that of new block placement. If the number of existing replicas is one, HDFS places the next replica on a different rack. In case that the block has two existing replicas, if the two existing replicas are on the same rack, the third replica is placed on a different rack; otherwise, the third replica is placed on a different node in the same rack as an existing replica. Here the goal is to reduce the cost of creating new replicas.


HDFS block placement strategy does not take into account DataNode disk space utilization. This is to avoid placing new—more likely to be referenced—data at a small subset of the DataNodes with a lot of free storage. Therefore data might not always be placed uniformly across DataNodes. Imbalance also occurs when new nodes are added to the cluster.

The balancer is a tool that balances disk space usage on an HDFS cluster. It takes a threshold value as an input parameter, which is a fraction between 0 and 1. A cluster is balanced if, for each DataNode, the utilization of the node3 differs from the utilization of the whole cluster4 by no more than the threshold value.

The tool is deployed as an application program that can be run by the cluster administrator. It iteratively moves replicas from DataNodes with higher utilization to DataNodes with lower utilization. One key requirement for the balancer is to maintain data availability. When choosing a replica to move and deciding its destination, the balancer guarantees that the decision does not reduce either the number of replicas or the number of racks.

The balancer optimizes the balancing process by minimizing the inter-rack data copying. If the balancer decides that a replica A needs to be moved to a different rack and the destination rack happens to have a replica B of the same block, the data will be copied from replica B instead of replica A.


The cluster administrator specifies list of nodes to be decommissioned. Once a DataNode is marked for decommissioning, it will not be selected as the target of replica placement, but it will continue to serve read requests. The NameNode starts to schedule replication of its blocks to other DataNodes. Once the NameNode detects that all blocks on the decommissioning DataNode are replicated, the node enters the decommissioned state. Then it can be safely removed from the cluster without jeopardizing any data availability.
